Duke ESI-II Initiator

Duke ESI-II Initiator

(No reviews yet) Leave a Review
Maximum Purchase:
99999 units

Item # 5098
Approved for use for all armed services.

The ESI/2 is the next generation of our electronic shock tube initiator. It uses our patented tip to provide reliable initiation of standard commercial and Mil-Spec shock tube for 10,000 shots.

Two-button operation and an under-voltage lockout assures that the unit will not fire prematurely and safely discharges in the event of an aborted shot.

Each unit has a tough rubber boot to accomodate rugged environments.

Size (LxWxH): 6.5" x 3" x 2" (16.5 cm x 7.62 cm x 5.0 cm)
Weight: 1.1 lbs. (0.5 kg)
Power Supply: One standard 9-Volt alkaline battery.
Shock Tube Tip: Fires both military and commercial shock tube

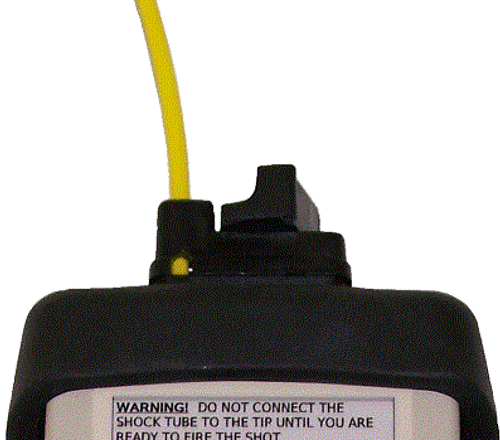

Uses patented plasma arc tip guaranteed to 10,000 shots
Environmentally Sealed: Submersible to 10 feet (3m)
Switches are double sealed and protected by a metal shroud
Main electronics are gasket sealed
Safety: Unit will not fire until fully charged to design voltage and automatically discharges safely if CHARGE button is released before firing. Two button fire control with shrouded switches to prevent accidental actuation.
Fast Charge: ~ 1 second
Long Battery Life: Provides over 600 charge/fire cycles
Military Rated: Pending. Unit is designed to comply with PESD, environmental hazards, and non-nuclear munitions fuzing safety standards.
Temperature Range: -40C ~ +85C
Colors: Desert Tan


Ordering Information
ESI/2 Hand-held shock tube initiator.
