Item # 4503
20 Gauge Duplex Wire

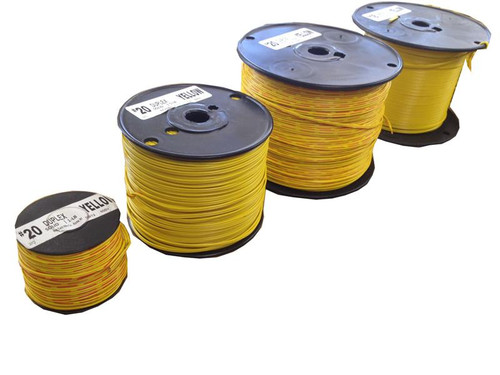

Duplex comes in yellow with red line on one side to show polarity. Available on 1#, 2#, 5#, 7#, 10# plastic or metal spools. 110 feet per lb.
Description
Copper Connecting Wire - a.k.a. "Blasting Wire" - is manufactured using a solid, soft drawn annealed copper conductor. The most common is #20 Duplex - two wires covered with Polyvinyl-chloride (PVC) insulation. The PVC web between the two conductors allows for ease of separation without the use of tools. As an alternative to Duplex, the industry uses "Single" #20. Special requests are welcome.
Designed for use in mining, drilling and blasting industries.
Nominal Overall Diameter (in inches, standard strands) - 0.062 x .124
Insulation Resistance (megaohms/mft) - 5
Nominal DC Resistance OHM/1000 ft @ 20 degrees Celsius - 10.1
Conductors: The single conductors are solid annealed copper.
Insulation: Yellow PVC (polyvinyl chloride) insulation. Duplex has a polarity stripe. Rated at 75 degrees Celsius.
Applicable Standards & Tests: ASTM B-3 and UL 1581. All products are spark tested at 1500 VAC unless otherwise specified.
Application
Designed for use in all electric blasting systems.
Features
Tough, oil and gasoline resistant, bright yellow insulation. Redline conductor identification with EZ Rip duplex construction.
Translation
Perfect for blowing stuff up!
Available Products
- Sizes #20 and #18 AWG in stock, others available if needed
- Single conductor or duplex
- Red line conductor identification
- Aluminum available
- Pails and High-impact plastic or metal spool options
- 1lb, 2lb, 5lb, or 10lb packages available
- "Kirking" available upon request
*Copper prices fluctuate weekly. We will always contact you with any price changes to obtain your approval prior to shipping your order.
Non-returnable item
