Instantel Micromate ISEE with Geo/Microphone

Item # 5122

Included parts:

• Base unit with 1000 event memory
• Standard ISEE Triaxal Geophone (2-250Hz) with 2m (6ft) cable
• Linear Microphone Assembly
• USB Cable
• Blastware® Compliance Module Software
• Power Adaptor
• Electronic version of manual
• Carrying case

Proven regulatory compliance designed to meet industry standards

Seamlessly record vibration and sound/noise or air overpressure with one monitoring unit. The Micromate has 4 available channels: 3 for a triaxial geophone and 1 for an air over pressure or sound level microphone. Designed to meet industry standards like the International Society of Explosive Engineers (ISEE, 2011), DIN 45669-1, Swedish blasting (SS4604866) and Swedish pile driving (SS025211), you can be sure to get accurate readings every time! And if you don’t want to worry about leveling your geophone again, combine the Micromate with Instantel’s new Smart Geo

An optional auxiliary port and a built-in USB port expand your monitoring capabilities

Connect powered USB hubs, printers, memory sticks, modems or a GPS. The Micromate will automatically detect connected devices in much the same manner that you are accustomed to with your computer. Choose the optional auxiliary port and get additional support for remote alarms, external wire triggers and more! With the Micromate, the possibilities are endless.

Built to last with a rugged design including a high-impact case, fully sealed top panel and non-corrosive connectors

The Micromate is built to last. The main unit comes with a fully sealed top panel. The non-corrosive fully sealed industrial grade connectors are labeled and color coded for easy identification and installation. Custom molded housings for the base unit are made of superior impact polycarbonate. An optional protective “boot” provides the highest level of durability and ruggedness available in Instantel’s product line. The operating temperature range is -40°C to 55°C (-40°F to 131°F). Reliability is at the core of everything Instantel makes!

A complete remote monitoring solution with support for Instantel’s Auto Call Home™, THOR™ and Vision™ programs

Recorded events can be retrieved with a USB memory stick (no PC required) or using a modem and Instantel’s proprietary Auto Call Home feature. With Auto Call Home you can automatically send an event to your computer every time an event is received. Add in THOR, Instantel’s desktop software solution, and automatically get notifications when you want them!

Instantel® Micromate Vibration and Overpressure Monitor.

• Rugged design including a high-impact case with a fully sealed top panel, and non-corrosive connectors.
• Small enough to be hand-held.
• User Interface: touch screen  (icon based), keypad, touch screen keyboard
• Auto Call Home feature    automates remote monitoring.
• USB communication for high speed data transfer and compatibility with optional Instantel approved Modem,  Printer and Memory Sticks.
• Instantel Histogram Combo recording        mode captures histograms and waveforms at the same time.
• Expansive memory stores thousands of events with optional expanded     memory.
• Non-stop monitoring with zero dead time, even while processing     events.

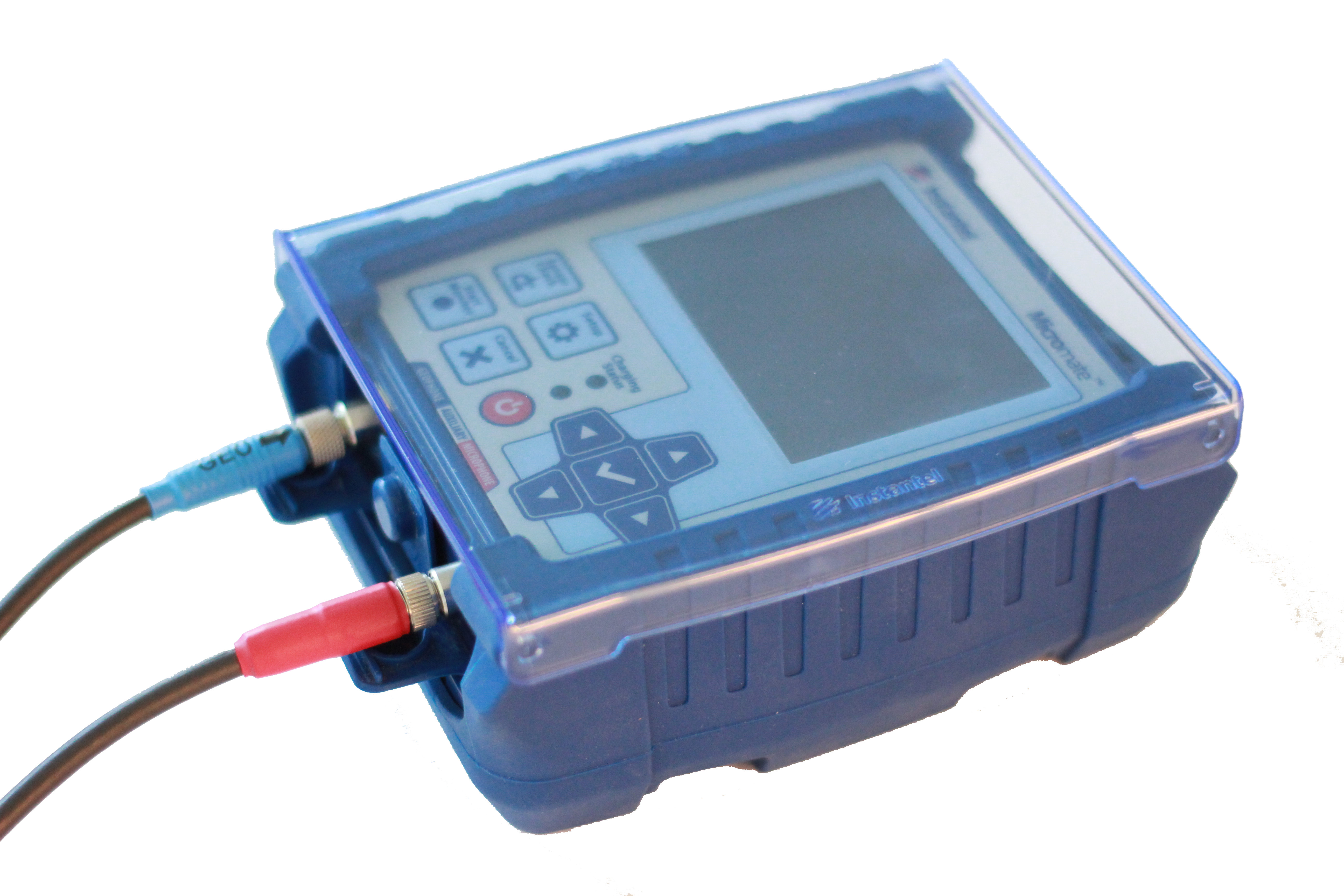

• Optional protective boot and clear faceplate.
• Optional battery pack increases 10 days of typical monitoring to 15 days.
• Optional printer and modem.
• Fully compliant with the International Society of Explosives Engineers "Performance Specifications for Blasting Seismographs."

Micromate Specifications

Included parts:

• Base unit with 1000 event memory
• Standard ISEE Triaxal Geophone (2-250Hz) with 2m (6ft) cable
• Linear Microphone Assembly
• USB Cable
• Blastware® Compliance Module Software
• Power Adaptor
• Electronic version of manual
• Carrying case

Range of Applications

• Pile driving
• Compaction
• Construction activity
• Demolition activity
• Heavy transportation monitoring
• Remote monitoring

Micromate Highlights
