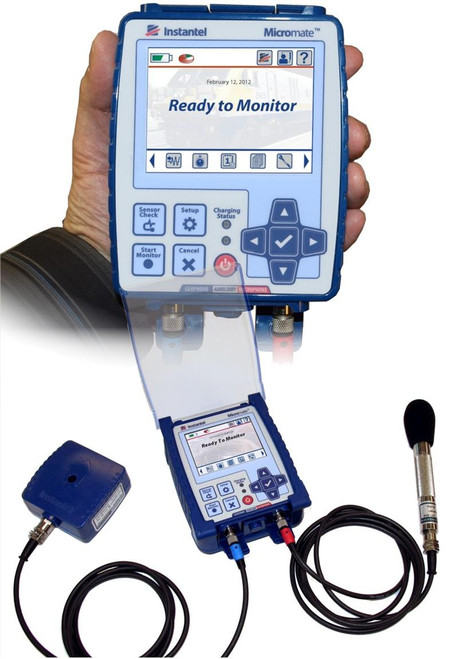

With over 40 years of expertise, Instantel has set the industry standard with our vibration, air-overpressure, and sound monitoring units. The Micromate Plus monitoring unit reinforces our position as a market leader.
Built-in features—Wi-Fi, Cellular, GPS, USB-C, Solar Controller, Optional AUX Port.
Use multiple sensors at the same time—connect a geophone, air overpressure microphone, and sound microphone for complete project management.
Simplified Calibration Process – the base unit does not require calibration. Only the sensors (Geophone, Linear Microphone, Sound Level Microphone) require annual calibration. To avoid downtime, leave the base unit in the field while you swap out the sensors for calibration.
Single-geophone design, factory-calibrated, with software-selectable compliance standards. Switch standards on the fly in Vision II.
Create customizable and multichannel compliance charts.
Two orthogonal through-holes allow the geophone to be easily mounted to the ground or wall.
Flexible data retrieval options:
Cloud upload to Vision II via cellular or Wi-Fi.
Local export to a USB-C mass-storage drive.
Direct USB-C connection to a computer.
No locked-in subscription fees.
Easy-to-use, fail-safe keypad for in-field configuration in areas without wireless coverage.
Rugged design—color-coded Mil-Spec connectors usable with gloves, IP68 rating, aluminum casing, with optional protective boot and cover.
Integrates seamlessly into Vision II software—monitor as if you were on site 24/7/365.
Change unit parameters without wait time on any device with an internet connection.
Monitor vibrations, air overpressure, sound level, and audio recording, all time-synchronized.
Triaxial Geophone
Linear Microphone
Sound Level Microphone
Construction
Blasting
Pile Driving
Quarries
Dynamic Compaction
Civil Projects
Underground Mines
Oil & Gas
Tunnels & Subways
Sound/Noise
Remote Access
Environmental
Heavy Transportation
High-Frequency Geophone
High-Frequency Borehole Geophone
High-Pressure Microphone
Uniaxial and Triaxial Accelerometers
Hydrophone
Borehole Geophone
Vision II Software can include custom graphs as well as international compliance standards and graphs such as:
Arrêté de 1994 (explosif), Australia 2187-2, ANSI S2.71 RMS 1s, AS 2187.2-2006, Brazilian Standard NBR 9653, British Standard 6472, British Standard 7385, UNE 22-381-93, DIN 4150, France SNCF IN1226, FTA (VdB), ICPE-Circulaire 86, Indian CMRI DGMS (A) & (B), ISO 10816-2 RMS, 2631-2, 8569, JIS C 1510 1995, NCh 3577, NF E90-020:2015, NOM-026-SESH, NS 8141, NS 8141-1, NS 8175, NS 8176, NZS/ISO 2631-2, ÖNORM S9012, ÖNORM S9020, PN-B-02170, SBR-A, SBR-B, Swedish Blasting SS 4604866, Swedish Pile Driving SS 025211, Swedish Human Annoyance SS 4604861:2022, Swedish Air-Shock SS 025210, Swiss SN 640 312a, Toronto 514-1/2, Turkey Mining & Quarry, USBM RI8507, and OSMRE.
Channels 1–3: Triaxial Geophone
Channels 4–5: Sound Level Microphone and Audio Channel
Channel 6: ISEE Linear Microphone
ISEE Mode
Range: Up to 254 mm/s (10 in/s)
Standard: ISEE Seismograph Specification (2022)
Resolution: 0.00775 mm/s (0.000305 in/s)
Density: 2.3 g/cc (144 lb/ft³)
Frequency Range: 2–250 Hz
Accuracy: ±5% or ±0.5 mm/s (0.02 in/s), whichever is larger
Phase Response: <10% of max absolute value from 2.5–250 Hz
Cable Length: 1000 m (3280.8 ft)
Extensions: 10, 30, or 75 m
DIN Mode
Range: Up to 254 mm/s (10 in/s)
Standard: DIN 45669-1
Resolution: 0.00775 mm/s (0.000305 in/s)
Density: 2.3 g/cc (144 lb/ft³)
Frequency Range: 1–80 Hz, 1–315 Hz
Cable Length: 1000 m (3280.8 ft)
Extensions: 10, 30, or 75 m
ISEE Linear Microphone
Range: Up to 1000 Pa (0.145 psi) [154 dB]
Resolution: 0.0305 Pa [0.05 dB]
Frequency: 2–250 Hz
Accuracy: ±1 dB typical
Cable Length: 77 m (252.6 ft)
Sound Level Microphone
Weighting: A or C
Response: Fast (125 ms) or Slow (1 s)
Range: 30–140 dB (A or C)
Resolution: 0.05 dB
Frequency: Up to 20 kHz
Standard: IEC 61672 Class 1
Cable Length: 77 m (252.6 ft)
Record Modes: Waveform, Waveform Manual, Histogram, Histogram Combo™
Storage: 32 GB
Seismic Trigger: 0.13–254 mm/s (0.005–10 in/s)
Linear Acoustic Trigger: 2–1000 Pa (0.00029–0.145 psi) [100–154 dB]
Sound Level Trigger: 33–140 dB (A or C)
Sample Rates: 1024, 2048, 4096, 8192 S/s (audio only)
Record Time: 2–90 seconds (up to 10 seconds pre-trigger)
Auto Record Time: >10 years @ 2-sec intervals, >20 years @ 1-min intervals
Full Waveform Events: >170,000
Dimensions: 20.1 x 11.9 x 8.1 cm (7.9 x 4.7 x 3.2 in)
Weight: 2.27 kg (5 lb)
Battery: 172 Wh
Interface: USB-C
Display: QVGA 320 x 240 color touchscreen
Keypad: 10 domed tactile keys + touchscreen
Inputs/Outputs: External Trigger and Remote Alarm
Temperature:
LCD: -20 to 55°C (-4 to 131°F)
Electronics: -40 to 55°C (-40 to 131°F)
Sound Mic: -20 to 55°C (-4 to 131°F)
Water Resistance: IP68 – submersible to 30 cm for 24h, 1.5 m for 1h
Humidity: Up to 95% RH, non-condensing
Altitude: 5000 m (16404 ft)
Built-in GPS (GNSS: GPS, Galileo, BeiDou)
Data Hosting Software: Vision II Cloud
Wi-Fi: 2.4 GHz (802.11 b/g/n)
Cellular: LTE-M (Cat M1) and NB-IoT (Cat NB2)
Compliance: CE Class A
